Kafka Cluster 실습

Kafka Cluster 구현

docker-compose

3개의 파티션과 3개의 파티션 유지가 골조

services:
  # --------------------------
  # Broker 1 (Node ID: 1)
  # --------------------------
  kafka-1:
    image: apache/kafka:3.7.0
    container_name: kafka-1
    ports:
      - "9092:9092"
    environment:
      KAFKA_NODE_ID: 1
      KAFKA_PROCESS_ROLES: broker,controller
      KAFKA_CONTROLLER_QUORUM_VOTERS: 1@kafka-1:9093,2@kafka-2:9093,3@kafka-3:9093

      # listeners
      KAFKA_LISTENERS: CONTROLLER://:9093,INTERNAL://:29092,EXTERNAL://:9092
      KAFKA_ADVERTISED_LISTENERS: INTERNAL://kafka-1:29092,EXTERNAL://localhost:9092
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: CONTROLLER:PLAINTEXT,INTERNAL:PLAINTEXT,EXTERNAL:PLAINTEXT
      KAFKA_CONTROLLER_LISTENER_NAMES: CONTROLLER
      KAFKA_INTER_BROKER_LISTENER_NAME: INTERNAL

      # replication configs
      KAFKA_OFFSETS_TOPIC_REPLICATION_FACTOR: 3
      KAFKA_TRANSACTION_STATE_LOG_REPLICATION_FACTOR: 3
      KAFKA_TRANSACTION_STATE_LOG_MIN_ISR: 2
      KAFKA_GROUP_INITIAL_REBALANCE_DELAY_MS: 0

      KAFKA_LOG_DIRS: /var/lib/kafka/data
    volumes:
      - kafka1_data:/var/lib/kafka/data
    networks:
      - kafka-net

  # --------------------------
  # Broker 2 (Node ID: 2)
  # --------------------------
  kafka-2:
    image: apache/kafka:3.7.0
    container_name: kafka-2
    ports:
      - "9093:9092"
    environment:
      KAFKA_NODE_ID: 2
      KAFKA_PROCESS_ROLES: broker,controller
      KAFKA_CONTROLLER_QUORUM_VOTERS: 1@kafka-1:9093,2@kafka-2:9093,3@kafka-3:9093

      # listeners
      KAFKA_LISTENERS: CONTROLLER://:9093,INTERNAL://:29092,EXTERNAL://:9092
      KAFKA_ADVERTISED_LISTENERS: INTERNAL://kafka-2:29092,EXTERNAL://localhost:9093
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: CONTROLLER:PLAINTEXT,INTERNAL:PLAINTEXT,EXTERNAL:PLAINTEXT
      KAFKA_CONTROLLER_LISTENER_NAMES: CONTROLLER
      KAFKA_INTER_BROKER_LISTENER_NAME: INTERNAL

      # replication configs
      KAFKA_OFFSETS_TOPIC_REPLICATION_FACTOR: 3
      KAFKA_TRANSACTION_STATE_LOG_REPLICATION_FACTOR: 3
      KAFKA_TRANSACTION_STATE_LOG_MIN_ISR: 2

      KAFKA_LOG_DIRS: /var/lib/kafka/data
    volumes:
      - kafka2_data:/var/lib/kafka/data
    networks:
      - kafka-net

  # --------------------------
  # Broker 3 (Node ID: 3)
  # --------------------------
  kafka-3:
    image: apache/kafka:3.7.0
    container_name: kafka-3
    ports:
      - "9094:9092"
    environment:
      KAFKA_NODE_ID: 3
      KAFKA_PROCESS_ROLES: broker,controller
      KAFKA_CONTROLLER_QUORUM_VOTERS: 1@kafka-1:9093,2@kafka-2:9093,3@kafka-3:9093

      # listeners
      KAFKA_LISTENERS: CONTROLLER://:9093,INTERNAL://:29092,EXTERNAL://:9092
      KAFKA_ADVERTISED_LISTENERS: INTERNAL://kafka-3:29092,EXTERNAL://localhost:9094
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: CONTROLLER:PLAINTEXT,INTERNAL:PLAINTEXT,EXTERNAL:PLAINTEXT
      KAFKA_CONTROLLER_LISTENER_NAMES: CONTROLLER
      KAFKA_INTER_BROKER_LISTENER_NAME: INTERNAL

      # replication configs
      KAFKA_OFFSETS_TOPIC_REPLICATION_FACTOR: 3
      KAFKA_TRANSACTION_STATE_LOG_REPLICATION_FACTOR: 3
      KAFKA_TRANSACTION_STATE_LOG_MIN_ISR: 2

      KAFKA_LOG_DIRS: /var/lib/kafka/data
    volumes:
      - kafka3_data:/var/lib/kafka/data
    networks:
      - kafka-net

  # --------------------------
  # Kafka UI
  # --------------------------
  kafka-ui:
    image: provectuslabs/kafka-ui:latest
    container_name: kafka-ui
    ports:
      - "8088:8080"
    environment:
      KAFKA_CLUSTERS_0_NAME: local-kraft-cluster
      KAFKA_CLUSTERS_0_BOOTSTRAPSERVERS: kafka-1:29092,kafka-2:29092,kafka-3:29092
      KAFKA_CLUSTERS_0_METADATAPROVIDER: "KAFKA"
      DYNAMIC_CONFIG_ENABLED: true
    depends_on:
      - kafka-1
      - kafka-2
      - kafka-3
    networks:
      - kafka-net

volumes:
  kafka1_data:
  kafka2_data:
  kafka3_data:

networks:
  kafka-net:
    driver: bridge

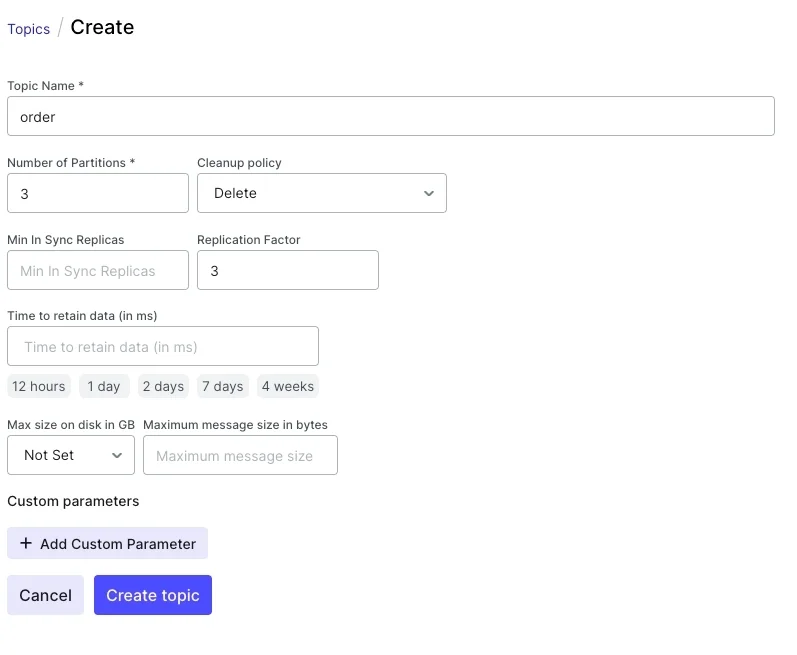

Topic 생성

Broker 생성 확인

FailOver 유발

1번 복구
